The difference between Limestone Ball Mill and Limestone Raymond Mill

Date:2016-06-12 03:22:47 ?? Source:Clirik

Limestone Ball Mill and Limestone Raymond mill  are the key equipment for grinding materials,Limestone Ball Mill and Limestone Raymond mill are also Limestone Grinding Mill, in general terms the use of the two is the same, it seems no difference, but in actual use, there is a big difference between them. Today we will listen to experts explain Limestone Raymond mill and Limestone Ball Mill differences and connections.

The difference between Limestone Ball Mill and Limestone Raymond Mill

1, Application difference between Limestone Ball Mill and Limestone Raymond mill

Limestone Ball Mill is more widely used in beneficiation field and Limestone Raymond mill more widely used in sand and gravel production line.

Limestone Raymond mill is widely used in Limestone, calcite, potash feldspar, talc, marble, limestone, Limestone, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock , plaster, glass, insulation materials Mohs hardness of not greater than 9.3, high fine powder processing and humidity below 6% of non-flammable mineral, chemical, construction and other industries more than 280 kinds of materials, R-type Limestone Raymond mill finished size within the range of 80-325 mesh of arbitrary regulation, part of the material up to 600 mesh.

Limestone Ball Mill is widely used in mineral processing plant, refractory plant, cement, glass, etc., using energy-efficient ball bearings, overflow discharge can save 30% energy than conventional

Limestone Ball Mill  is suitable for grinding various ores and other materials are widely used in mineral processing, building materials and chemical industry can be divided into two kinds of dry and wet grinding methods, wet Limestone Ball Mill is the material wet ground water seepage, dry Limestone Ball Mill seepage dry grinding is not allowed. According to the same manner of discharge can be divided into two kinds of lattice type and overflow.


2, Working Principle difference between Limestone Ball Mill and Limestone Raymond mill

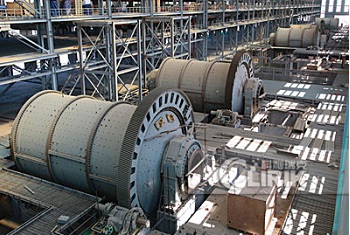

Limestone Ball Mill is a horizontal cylindrical rotating device, material from the feed device into the compound by the air shaft into the mill screw evenly the first warehouse, there are ladder liner or corrugated liner inside the warehouse, and is equipped with different specifications of steel balls, rotating cylinder produces centrifugal force to the ball a certain height. After the fall, have severe impact on the material and abrasive. The material in the first position coarse, the single-compartment plate into the second position, the material is further ground in the warehouse, the final powder is discharged through the discharge grate plate to complete the grinding.

The material entered Limestone Raymond mill is needed from the side of the machine casing feed hopper into the machine, is suspended from the host device about the vertical axis roller revolution motion, while their rotation, the centrifugal force due to rotation, the roller outside swing, pressed on grinding ring, so the shovel blade materials sent between roller and grinding ring rolling mill rolls because the material compacted crushed.

3, structure difference between Limestone Ball Mill and Limestone Raymond mill

Limestone Ball Mill consists of the feeding part, discharging part, turning part and driving and other components. Hollow shaft with steel fittings, removable lining, rotary gear hobbing by casting process, the body inlaid cylinder liner wear, has good abrasion resistance.

Limestone Raymond mill mainly consists of the host, analyzers, blower, finished cyclone, cyclone powder and wind pipe. Among them, the master and the roller, grinding ring, rack, inlet volute, blade and housing components.

Shanghai Clirik Machinery Co.,Ltd is the professional Limestone ball mill and processing machine manufacturer, devoted to the Limestone powder grinding process more than 10 years.Clirik can supply Vertical Roller mill,Raymond Mill,Ball Mill,Ultrafine mill,Hammer mill used for Limestone grinding. And our company have gotten the ISO9001:2008, and the HGM Limestone grinding mill passed the CE certification. If you are interested in Limestone processing machine, we are welcoming to your visiting.
