Kaolin limestone dry ball mill

Date:2018-11-12 14:27    Source:Clirik

The ball mill can be divided into dry ball mill and wet ball mill. So how do we choose these two kinds of ball mills?
Ball mill is the key equipment for grinding materials after crushing. It is suitable for cement, silicate products, new building materials, refractories, fertilizers, non-ferrous metal mineral processing and glass-ceramics industries. It can grind all kinds of ores and other grindable materials dry or wet.
Why do we divide the ball mill into two categories? What's the difference between them?
In fact, dry ball mills are suitable for grinding dry materials and do not add water during the operation of machines. This type of ball mill is straight cylindrical with dust pipes and dust remover. Wet ball mills need water when they work. The movement of ore material in the machine is accomplished by the action of water flow. This kind of ball mill can be divided into three types: simple swing wet ball mill, complex swing wet ball mill and mixed swing wet ball mill.

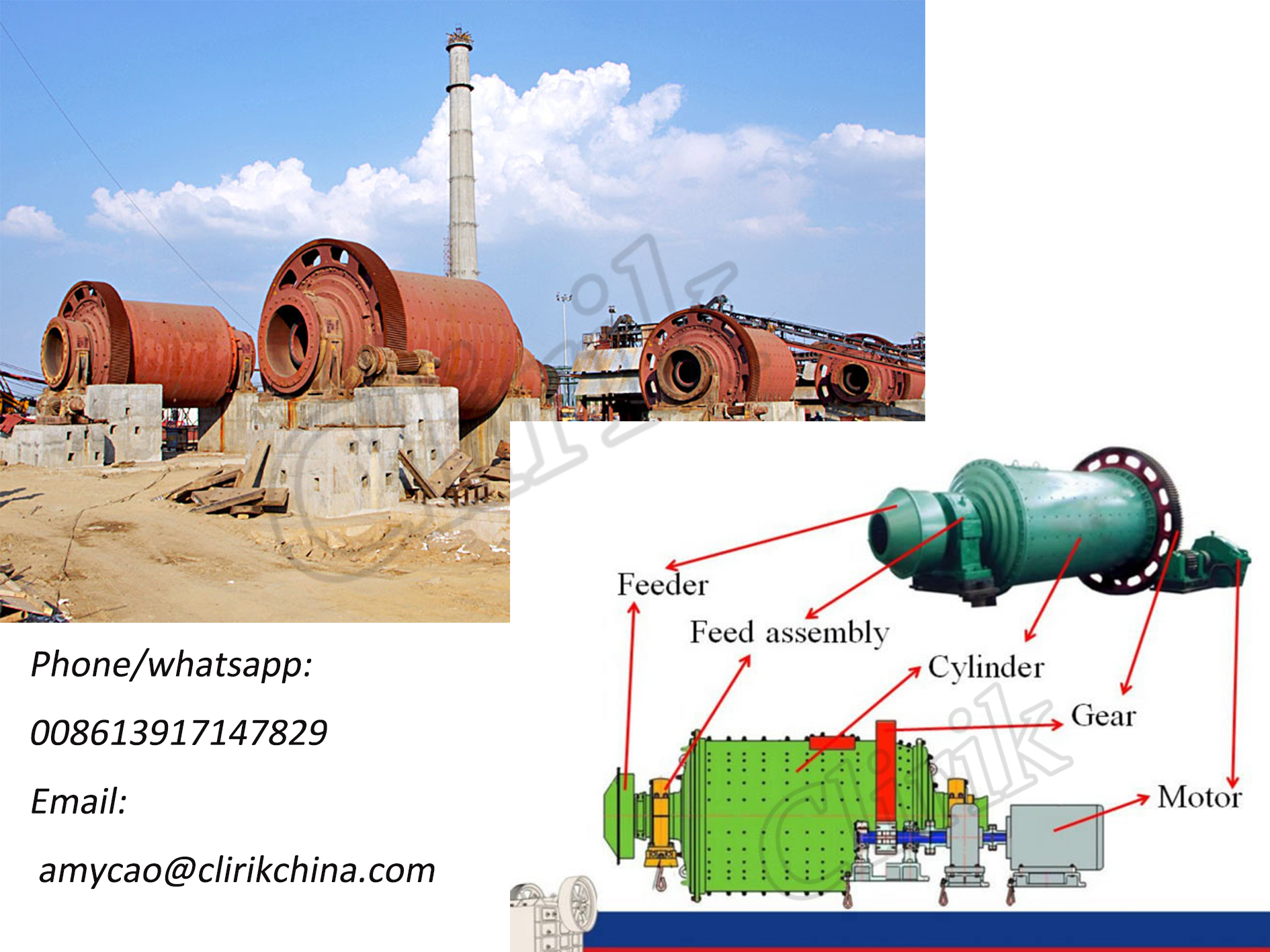

Our company mainly produces dry ball mills. Now let's take a look at its structural composition. It is composed of feeding part, discharging part, rotating part, transmission part (reducer, small transmission gear, motor, electronic control) and so on.
Material enters the first warehouse of the mill evenly by screw through the hollow shaft of the feeding device. There are staircase or corrugated lining plates and steel balls of different specifications in the warehouse. The centrifugal force produced by the rotation of the cylinder brings the steel ball to a certain height and then these balls fall down, which has a heavy blow and grinding effect on the material. After the material is roughly grinded in the first bin, it enters the second bin through a single-layer partition board. The bin is equipped with a flat lining board and steel balls to further grind the material. The powder is discharged through the discharging grate plate to finish the grinding operation.
We also produce Raymond mill, micro powder grinding mill, vertical roller mill and some crushers. Powder coating and packaging machine are also available. If you have any needs, welcome to contact us. You can chat with us online, leave messages on our website or call us directly. We will reply to you within 12 hours.
kaolin limestone ball mill
