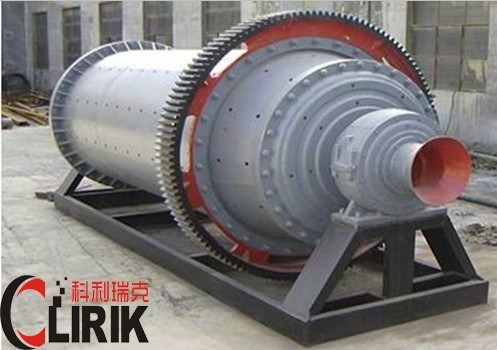

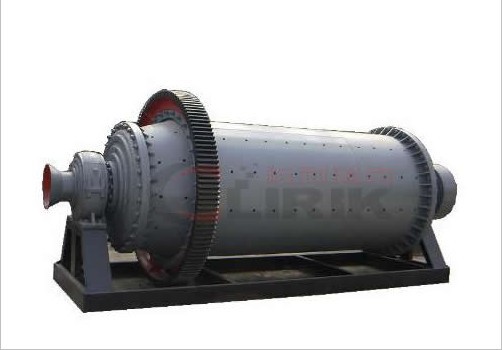

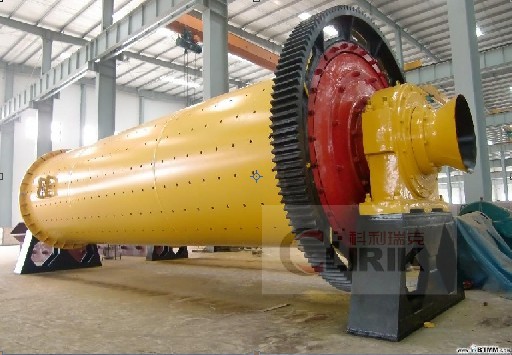

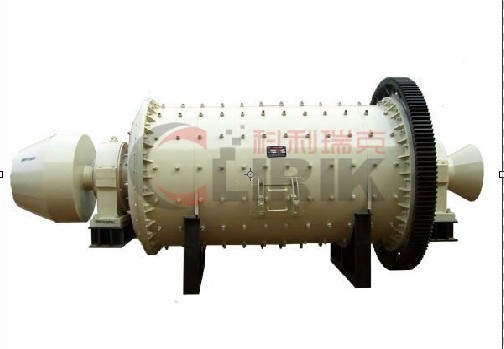

calcium carbonate ball mill
【Feeding size】：≤25mm
【Discharging size】：0.074-0.4mm
【Application】：be suitable for grinding(wet or dry) all kinds of ores and other materials,such as ferrous & non-ferrous metal mine, building materials, chemical, electric power, coal, traffic, lig
Ball mill is the key equipment for secondary grinding after crushing, and it is widely used in powder-making production line.
The calcium carbonate ball mill can be obtained by crushing natural calcite, limestone, chalk, shells, etc in mechanical approach(use raymond mill, ball mill or other high pressure grinding machine).
The material spirally and evenly enters into the first warehouse of ball mill along the input material hollow axis by input material device. In this warehouse, there is a ladder scale board or ripple scale board, and different specification steel balls are installed on the scale board. Cylinder rotation will generate centrifugal force and carries steel balls to a certain height. Then the steel balls falls strike and grind the materials. After being grinded coarsely in the first warehouse, the materials then enter into the second warehouse along the single insulation layer. In this warehouse, there is flat scale board with steel balls for further grinding. In the end, the power is discharged by output material board and the grinding operation is competed.
|
Model |
Cylinder rotary speed（r/min） |
Loading ball weight(t) |
Input size(mm) |
Discharge size(mm) |
Capacity(t/h) |
Motor power (kw) |
Weight (t) |
|
Ф900×1800 |
39 |
1.5 |
≤20 |
0.075-0.89 |
0.8-2 |
18.5 |
4.6 |
|
Ф900×3000 |
39 |
2.7 |
≤20 |
0.075-0.89 |
1-4 |
22 |
5.6 |
|
Ф1200×3000 |
36 |
3.5 |
≤25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
|
Ф1200×4500 |
32 |
5 |
≤25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
|
Ф1500×3000 |
27 |
7.5 |
≤25 |
0.074-0.4 |
2-5 |
75 |
15.6 |
|
Ф1500×5700 |
28 |
12 |
≤25 |
0.074-0.4 |
3.5-6 |
130 |
24.7 |
|
Ф1830×3000 |
25 |
11 |
≤25 |
0.074-0.4 |
4-10 |
130 |
28 |
|
Ф1830×6400 |
24 |
21 |
≤25 |
0.074-0.4 |
7-16 |
210 |
34 |
|
Ф1830×7000 |
24 |
23 |
≤25 |
0.074-0.4 |
8-18 |
245 |
36 |
|
Ф2100×3600 |
23 |
19 |
≤25 |
0.074-0.4 |
10-36 |
210 |
46 |
|
Ф2200×4500 |
21 |
27 |
≤25 |
0.074-0.4 |
12-23 |
280 |
48.5 |
|
Ф2200×6500 |
21 |
35 |
≤25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
|
Ф2200×7000 |
21 |
35 |
≤25 |
0.074-0.4 |
15-28 |
380 |
54 |
|
Ф2200×7500 |
21 |
35 |
≤25 |
0.074-0.4 |
15-30 |
380 |
56 |
|
Ф2400×4500 |
21 |
30 |
≤25 |
0.074-0.4 |
18-45 |
320 |
65 |
|
Ф2400×8000 |
20 |
36 |
≤25 |
0.074-0.4 |
20-48 |
410 |
81 |
|
Ф2700×3600 |
21 |
39 |
≤25 |
0.074-0.4 |
19-75 |
400 |
83 |
|
Ф2700×4000 |
20 |
40 |
≤25 |
0.074-0.4 |
20-78 |
400 |
85 |
|
Ф2700×4500 |
20 |
48 |
≤25 |
0.074-0.4 |
22-85 |
430 |
89 |
|
Ф3200×4500 |
18 |
65 |
≤25 |
0.074-0.4 |
29-140 |
800 |
137 |
|
Ф3200×5400 |
18 |
81.6 |
≤25 |
0.074-0.4 |
30-180 |
800-1000 |
146 |
|
Ф3600×4500 |
17 |
88 |
≤25 |
0.074-0.4 |
35-210 |
1000 |
190 |
|
Ф3600×6000 |
17 |
117 |
≤25 |
0.074-0.4 |
38-240 |
1250-1500 |
220 |
|
Ф3600×8500 |
17 |
144 |
≤25 |
0.074-0.4 |
45-260 |
1800 |
260 |
