In dressing industry, Mining ball mill are widely used in metallic and non-metallic mining, building materials for all kinds of ores or rock grinding.

As professional ball mill supplier for more than 30 years, our ball mill for sale has many advantages:
1. Our mining(ore)  ball mill has simple structure and split installation.
2. Our mining(ore)  ball mill are 35% saving energy.
3. Our mining(ore)  ball mill are with sliding bearing.

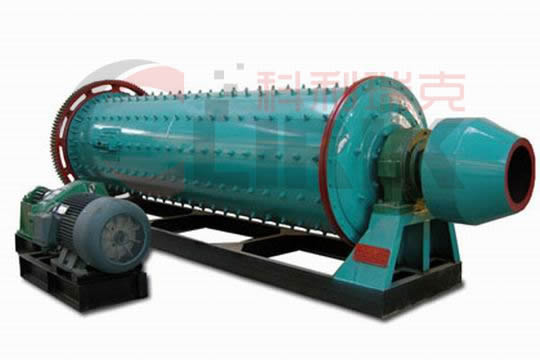

The mining(ore)  ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Model	Cylinder rotary speed（r/min）	Loading ball weight(t)	Input size(mm)	Discharge size(mm)	Capacity(t/h)	Motor power (kw)	Weight (t)
Ф900×1800	39	1.5	≤20	0.075-0.89	0.8-2	18.5	4.6
Ф900×3000	39	2.7	≤20	0.075-0.89	1-4	22	5.6
Ф1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Ф1200×4500	32	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ф1500×3000	27	7.5	≤25	0.074-0.4	2-5	75	15.6
Ф1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
Ф1830×3000	25	11	≤25	0.074-0.4	4-10	130	28
Ф1830×6400	24	21	≤25	0.074-0.4	7-16	210	34
Ф1830×7000	24	23	≤25	0.074-0.4	8-18	245	36
Ф2100×3600	23	19	≤25	0.074-0.4	10-36	210	46
Ф2200×4500	21	27	≤25	0.074-0.4	12-23	280	48.5
Ф2200×6500	21	35	≤25	0.074-0.4	14-26	380	52.8
Ф2200×7000	21	35	≤25	0.074-0.4	15-28	380	54
Ф2200×7500	21	35	≤25	0.074-0.4	15-30	380	56
Ф2400×4500	21	30	≤25	0.074-0.4	18-45	320	65
Ф2400×8000	20	36	≤25	0.074-0.4	20-48	410	81
Ф2700×3600	21	39	≤25	0.074-0.4	19-75	400	83
Ф2700×4000	20	40	≤25	0.074-0.4	20-78	400	85
Ф2700×4500	20	48	≤25	0.074-0.4	22-85	430	89
Ф3200×4500	18	65	≤25	0.074-0.4	29-140	800	137
Ф3200×5400	18	81.6	≤25	0.074-0.4	30-180	800-1000	146
Ф3600×4500	17	88	≤25	0.074-0.4	35-210	1000	190
Ф3600×6000	17	117	≤25	0.074-0.4	38-240	1250-1500	220
Ф3600×8500	17	144	≤25	0.074-0.4	45-260	1800	260

Notice: Any change of mining(ore) Ball Mill technical data shall not be advised additionally.
