Barite ball mill machine could carry out dry and wet millings on different materials. Barite ball mill is a mineral processing machine for milling the materials into powders after they are crushed. It is widely applied to the production of cements, silicate products, building materials, fireproof materials, fertilizers, glass, ceramics as well as nonferrous and ferrous metal processing industries. Barite ball mill, as a piece of mineral processing equipment, a ball mill is widely used in beneficiation, building material and chemical industries. As proffessional ball mill supplier for more than 30 yeas, we offer various kinds of ball mill for sale.

The features of barite ball mill
1.The barite ball mill has high efficiency
2. Long lifecycle of spare parts
3. Our barite ball mill is with high safety and reliability

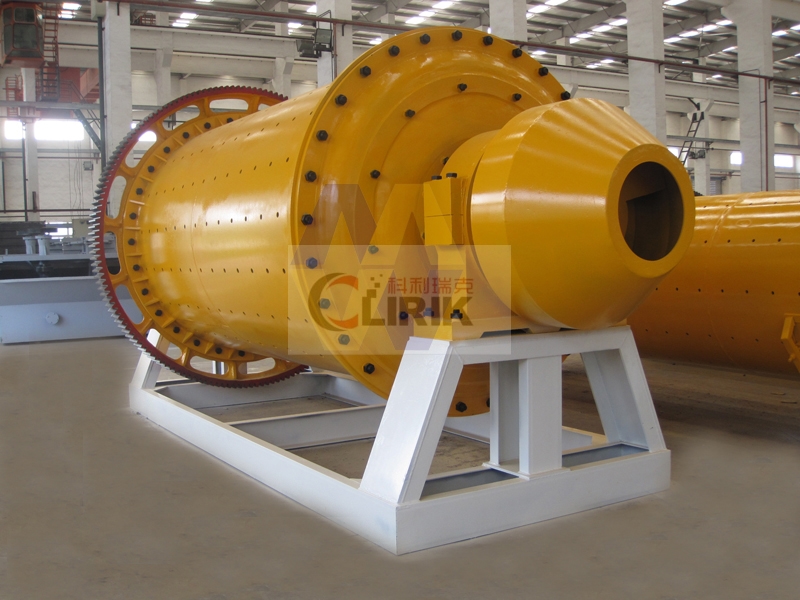

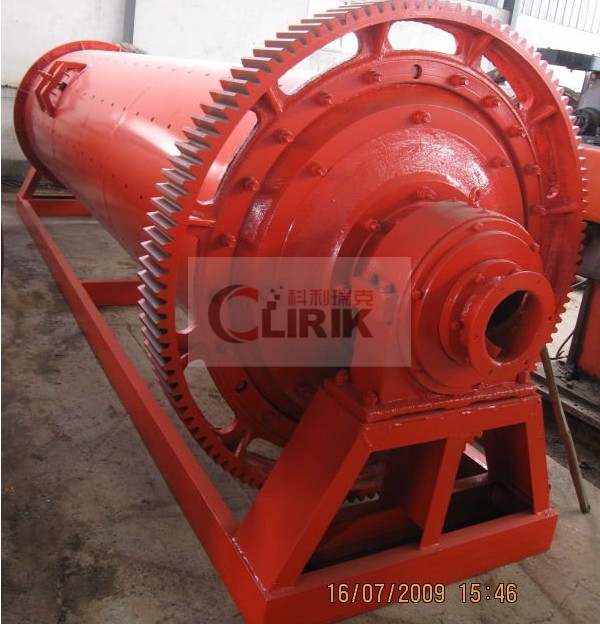

The barite ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and rippleliner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Model	Shell rotation speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity	Motor power (kw)	Total weight(t)
Ø900*1800	36--38	1.5	<=20	0.075-0.89	0.65-2	18.5	5.5
Ø900*3000	36	2.7	<=20	0.075-0.89	1.1-3.5	22	6.7
Ø1200*2400	36	3	<=25	0.075-0.6	1.5-4.8	30	12
Ø1200*3000	36	3.5	<=25	0.074-0.4	1.6-5	37	12.8
Ø1200*4500	32.4	5	<=25	0.074-0.4	1.6-5.8	55	13.8
Ø1500*3000	29.7	7.5	<=25	0.074-0.4	2-5	75	16.8
Ø1500*4500	27	11	<=25	0.074-0.4	3-6	110	21
Ø1500*5700	28	12	<=25	0.074-0.4	3.5-6	130	25.8
Ø1830*3000	25.4	11	<=25	0.074-0.4	4-10	130	29
Ø1830*4500	25.4	15	<=25	0.074-0.4	4.5-12	155	35.5
Ø1830*6400	24.1	21	<=25	0.074-0.4	6.5-15	210	43
Ø1830*7000	24.1	23	<=25	0.074-0.4	7.5-17	245	43.8
Ø2100*3000	23.7	15	<=25	0.074-0.4	6.5-36	155	34.8
Ø2100*4500	23.7	24	<=25	0.074-0.4	8-43	245	38
Ø2100*7000	23.7	26	<=25	0.074-0.4	8-48	280	56.6
Ø2200*4500	21.5	27	<=25	0.074-0.4	9-45	280	51.8
Ø2200*6500	21.7	35	<=25	0.074-0.4	14-26	380	60
Ø2200*7000	21.7	35	<=25	0.074-0.4	15-28	380	62
Ø2200*7500	21.7	35	<=25	0.074-0.4	15-30	380	64.8
Ø2400*3000	21	23	<=25	0.074-0.4	7-50	245	54
Ø2400*4500	21	30	<=25	0.074-0.4	8.5-60	320	65
Ø2700*4000	20.7	40	<=25	0.074-0.4	12-80	380	94
Ø2700*4500	20.7	48	<=25	0.074-0.4	12-90	480	102
Ø3200*4500	18	65	<=25	0.074-0.4	-----	800	137
Ø3600*4500	17	90	<=25	0.074-0.4	-----	850	158
Ø3600*6000	17	110	<=25	0.074-0.4	-----	1250	175
Ø3600*8500	18	131	<=25	0.074-0.4	45.8-256	1800	252
Ø4000*5000	16.9	121	<=25	0.074-0.4	45-208	1500	203
Ø4000*6000	16.9	146	<=25	0.074-0.4	65-248	1600	213
Ø4000*6700	16.9	149	<=25	0.074-0.4	45-252	1800	238
Ø4500*6400	15.6	142	<=25	0.074-0.4	54-306	2000	280
Ø5030*6400	14.4	216	<=25	0.074-0.4	68-386	2500	320
Ø5030*8300	14.4	266	<=25	0.074-0.4	88-500	3300	403
Ø5500*8500	13.8	338	<=25	0.074-0.4	108-615	4500	525

Notice: Any change of barite ball mill technical data shall not be advised additionally.
